Operator Reinforcing Brackets
Click on images for a larger view.

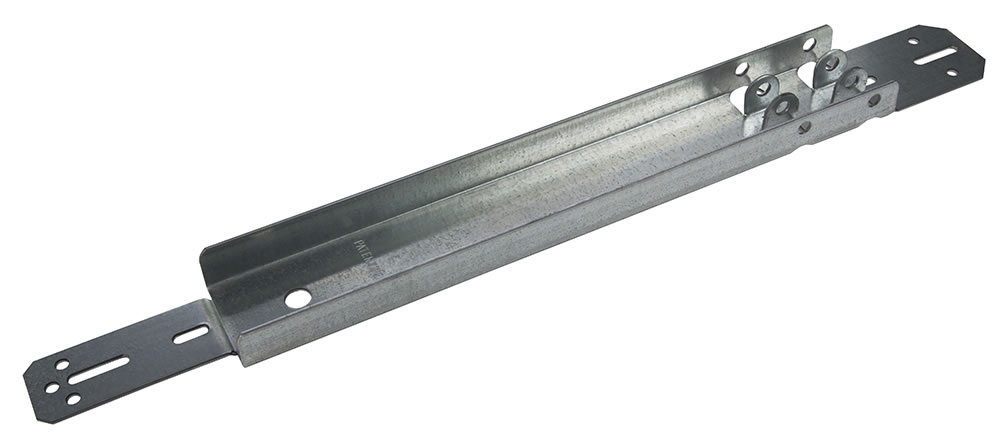

300-56000 (18" ORB Operator Hook-up Bracket; Galv Steel)

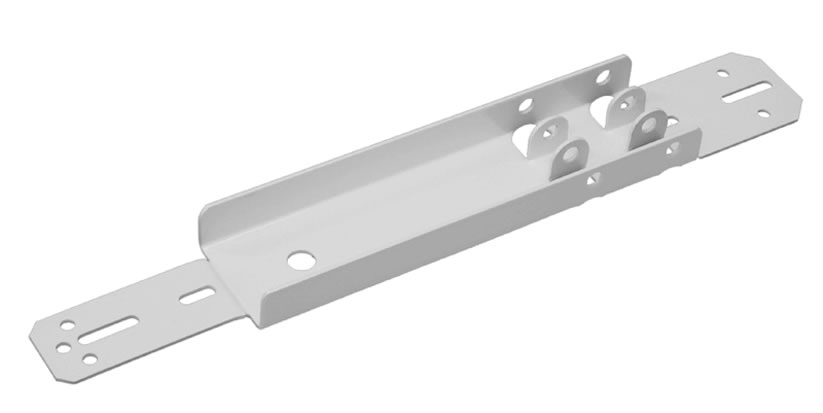

White Powder Coat

Galvanized Steel

Galvanized Steel or White Powder Coat
Pin and Cotter included
Economical one-piece design
Part # Description
300-56000 18" ORB Operator Hook-up Bracket; Galv Steel
300-56001 21" ORB Operator Hook-up Bracket; Galv Steel
300-56002 24" ORB Operator Hook-up Bracket; Galv Steel
300-56003 18" ORB Operator Hook-up Bracket; White Powder Coat
300-56004 21" ORB Operator Hook-up Bracket; White Powder Coat
300-56005 24" ORB Operator Hook-up Bracket; White Powder Coat

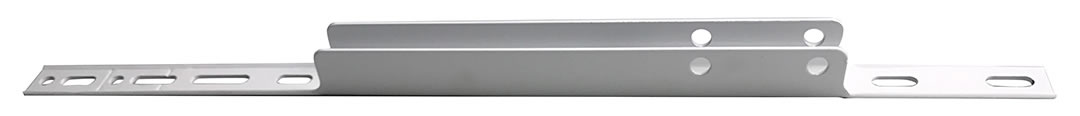

21" - 27" Econo Operator Hook Up Bracket
Click on images for a larger view.

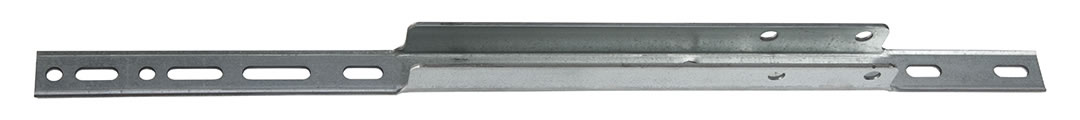

300-56200 (21" Galvanized Econo Operator Hook-up Bracket)

Econo Operator Hook Up Brackets
21" may be shortened to 16"
24" may be shortened to 21"
Galvanized

Narrow Design; Overlaps Hinge; Permits Strut Application
Heavy Gauge Construction; For all Residential and Commercial Applications
Part # Description
300-56200 21" Galvanized Econo Operator Hook-up Bracket
300-56201 21" White Powder Coated Econo Operator Hook-up Bracket
300-56205 24" Galvanized Econo Operator Hook-up Bracket w/Pin and Cotter for up to 24" Sections
300-56206 24" White Powder Coated Econo Operator Hook-up Bracket w/Pin and Cotter for up to 24" Sections
300-56210 27" White Narrow Operator Hook-up Bracket w/pin and cotter for 28"-32" 3-section doors.


Adjustable Operator Reinforcing Brackets
Click on images for a larger view.
300-56050 (Adjustable Operator Reinforcing Bracket; 18"-24" Sections; ZP; Pin and Cotter included)

300-56050
Zinc Plated AORB

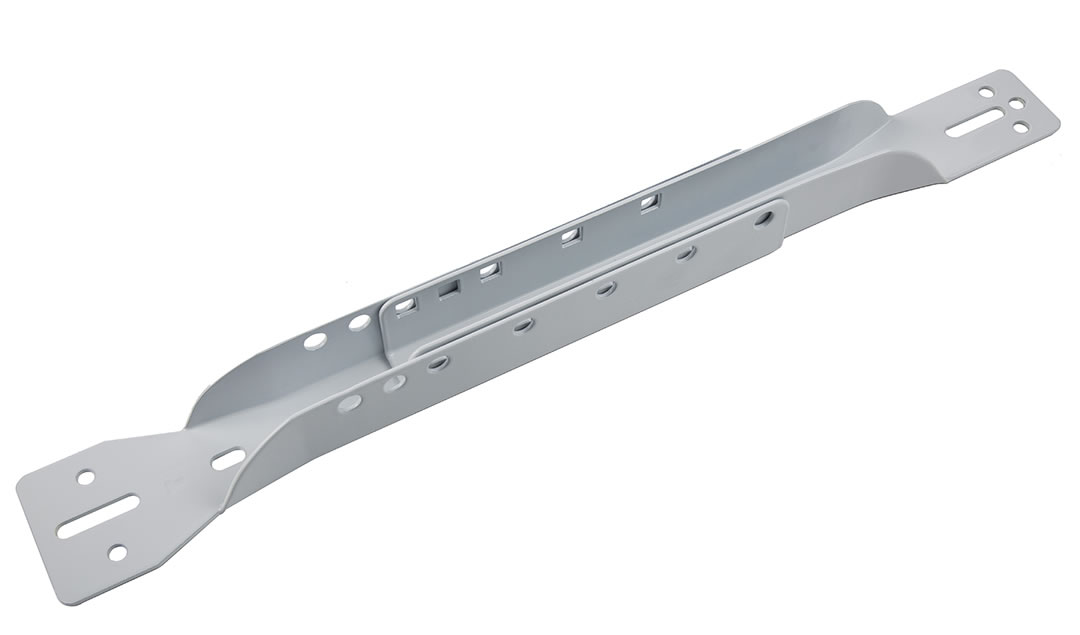

300-56055
White Powder Coat AORB
Part # Description
300-56050 Adjustable Operator Reinforcing Bracket; 18"-24" Sections; ZP; Pin and Cotter included
300-56055 Adjustable Operator Reinforcing Bracket; 18"-24" Sections; White powder coated. Pin and Cotter included
