Reduced Drive - Wall Mount Hoists
Click on images for a larger view.

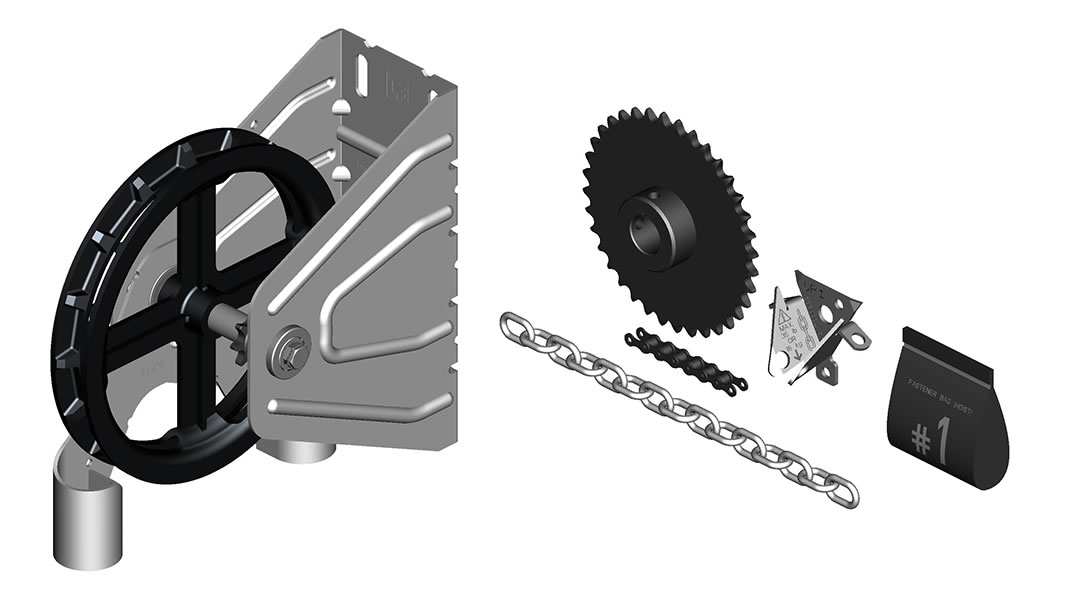

2000R Reduced Drive Wall Mount Hoist
300-64000 Has 4:1 Reduction; 1" Bore; 41B36 x 1" Drive Sprocket
300-64001 Has 4:1 Reduction; 1 1/4" Bore; 41B36 Sprocket
Both Models: #41 Roller Chain; 26" of Hand Chain; 35# Max Hand Chain Pull Load ; 1/4" Keyway
All Hardware Provided
Part # Description
300-64000 2000R; 4:1 Reduction Wall Mount Hoist 1" Bore
300-64001 2000R; 4:1 Reduction Wall Mount Hoist 1 1/4" Bore; 41B36; 1 1/4" drive sprocket

Click on images for a larger view.

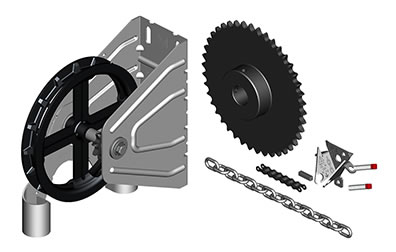

2000R Reduced Drive Wall Mount Hoist
300-64002 Has 4.2:1 Reduction; 1" Bore; 50B42 Sprocket
#41 Roller Chain; 26" of Hand Chain; 35# Max Hand Chain Pull Load; 1/4" Keyway
All Hardware Provided
Part # Description
300-64002 2000R; 4.2:1 Reduction Wall Mount Hoist 1" Bore; 50B42

Click on images for a larger view.

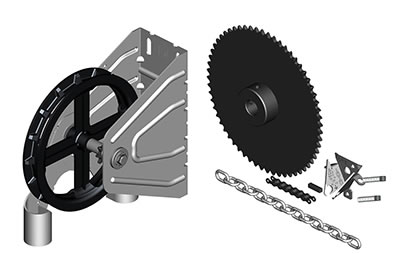

2000R HR Reduced Drive Wall Mount Hoist
300-64005 Has 6.6:1 Reduction; 1 in. Bore; 41B60 x 1" Sprocket
300-64006 Has 6.6:1 Reduction; 1 1/4" bore; 41B60 Sprocket
Both Models: #41 Roller Chain; 26" of Hand Chain; 35# Max Hand Chain Pull Load; 1/4" Keyway
All Hardware Provided
Part # Description
300-64005 2000R-HR; 6.6:1 Reduction Wall Mount Hoist 1" Bore
300-64006 2000R-HR; 6.6:1 Reduction Wall Mount Hoist 1 1/4" Bore; 41B60 x 1 1/4" Drive Sprocket

Click on images for a larger view.

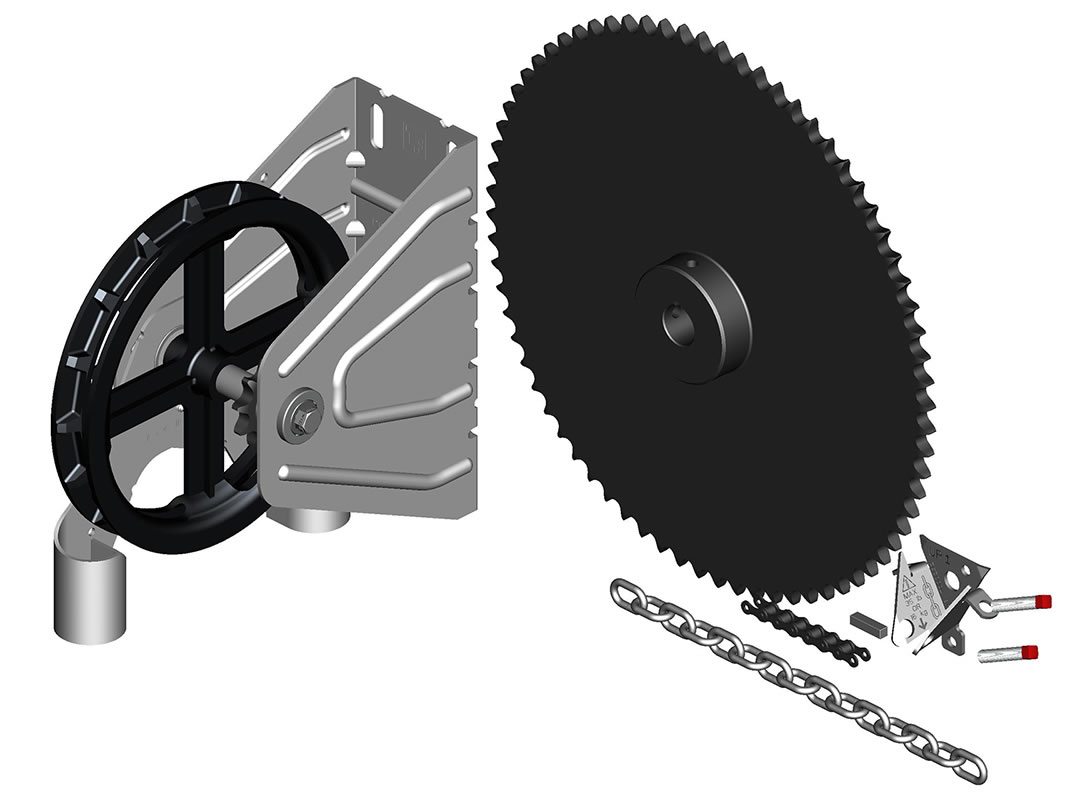

300-64008 (2000R HR)
7.2:1 Reduction Wall Mount; 1 1/4" Bore; 50B72 x 1 1/4" Sprocket;
#50 Roller Chain; 26" of Hand Chain; 35# Max Hand Chain Pull Load; 1/4" Keyway
All Hardware Provided
Part # Description
300-64008 2000R-HR; 7.2:1 Reduction Wall Mount Hoist; 1 1/4" Bore; 50B72 x 1 1/4" Sprocket

Click on images for a larger view.

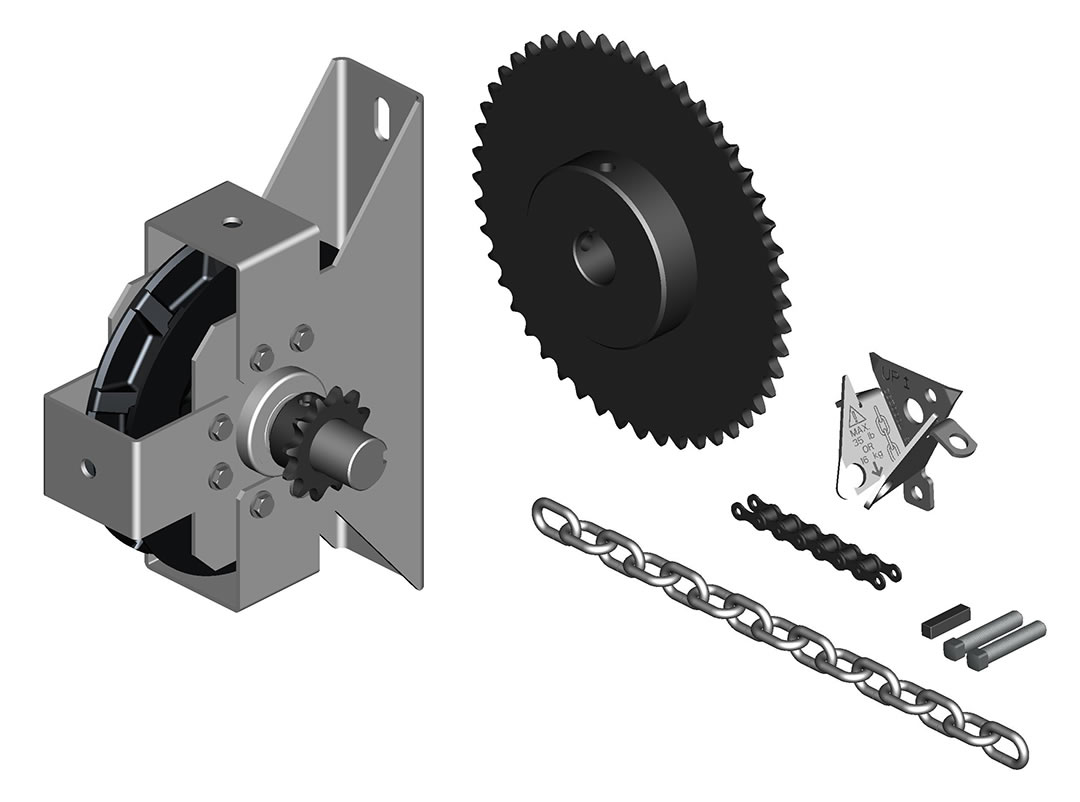

300-64010
3:1 Reduction Wall Mount; 1 in. Bore (200R)
Part # Description
300-64010 200R; 3:1 Reduction Wall Mount Hoist 1 " Bore
