2024
Page 143


< Previous
Go to page:
  Next >
120" High Lift Drums

216" Vertical Lift Drums
Click on images for a larger view.

250-20205
(D1100-216 VL)
1" bore
250-20206
(D1100-216 VL-1.25)
1 1/4" bore
216" Vertical Lift Drums
18" of lift
660 lb capacity/drum;
Max Cable 3/16"
1/4" Keyway under Set Screw
For Solid Shaft
1" or 1 1/4" bore
Set Screws Installed
Color Coded
Part # Description
250-20205 Vertical Lift; 18' of lift 1" bore (D1100-216 V.L.)
250-20206 Vertical Lift; 18' of lift 1 1/4" bore (D1100-216-1.25 V.L.)

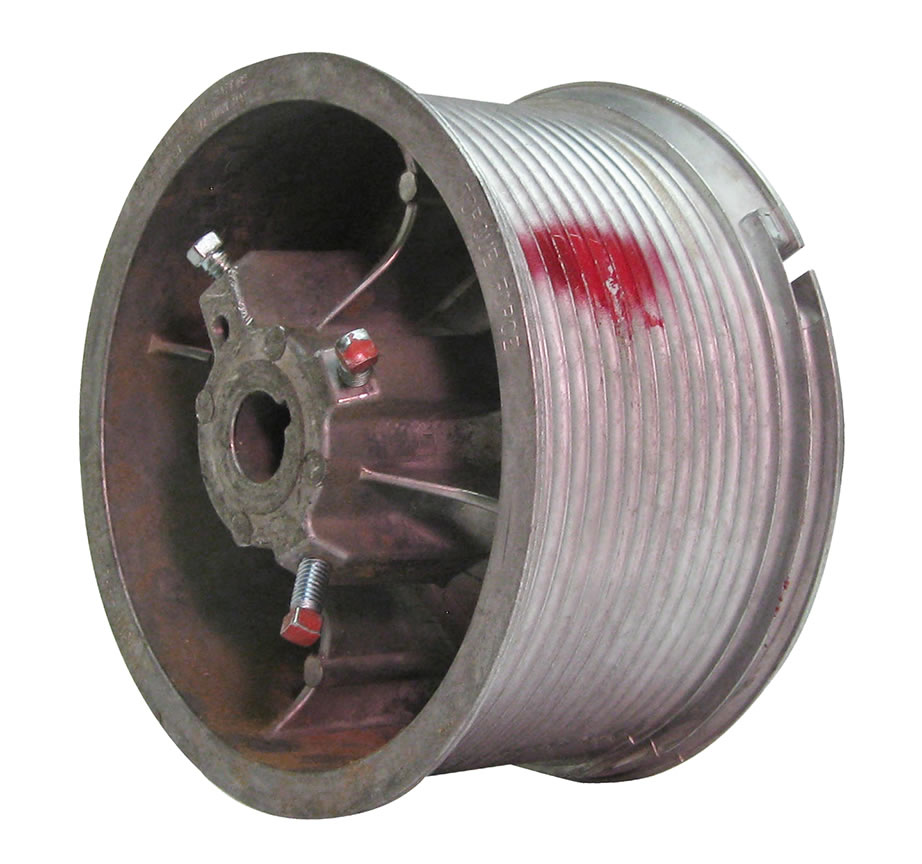

336" Vertical Lift Drums
Click on images for a larger view.

250-20215
(D1350-336 VL)
1" bore
250-20216
(D1350-336 VL)
1 1/4" bore336" Vertical Lift Drums
1/4" Keyway under Set Screw
For Solid Shaft
1" or 1 1/4" bore
Set Screws Installed
Color Coded
28" of lift
1100 lb capacity/drum;
Max Cable 1/4"
Part # Description
250-20215 Vertical Lift; 28' of lift 1" bore (D1350-336 V.L.)
250-20216 Vertical Lift; 28' of lift 1-1/4" shaft bore (D1350-336-1.25 V.L.)


Universal Spring Cone Sets
Click on images for a larger view.

250-10000
1 3/4" Universal Cone Set
Cast Aluminum
Set Screws Installed
Color Coded Sets
250-10000 (1 3/4" Universal Cone Set)

250-10001
2" Universal Cone Set
Cast Aluminum
Set Screws Installed
Color Coded Sets

250-10002
2 5/8" Universal Cone Set
Cast Aluminum
Set Screws Installed
Color Coded Sets
Part # Description
250-10000 1 3/4" Universal Cone Set
250-10001 2" Universal Cone Set
250-10002 2 5/8" Universal Cone Set

Click on images for a larger view.
250-10003 (3 3/4" Universal Cone Set; 1" Bore )

250-10003
3 3/4" Universal Cone Set;
1" Bore
Cast Aluminum
Set Screws Installed
Color Coded Sets

250-10004
5 1/4" Universal Cone Set;
1" Bore
Cast Aluminum
Set Screws Installed
Color Coded Sets

250-10005
5 1/4" Universal Cone Set;
1 1/4" Bore
Cast Aluminum
Set Screws Installed
Color Coded Sets
Part # Description
250-10003 3 3/4" Universal Cone Set; 1" Bore
250-10004 5 1/4" Universal Cone Set; 1" Bore
250-10005 5 1/4" Universal Cone Set; 1 1/4" Bore

Click on images for a larger view.
250-10006 (6" Universal Cone Set; 1" bore )

250-10006
6" Universal Cone Set;
1" bore
Cast Aluminum
Set Screws Installed
Color Coded Sets

250-10007
6 in. Universal Cone Set;
1 1/4" bore
Cast Aluminum
Set Screws Installed
Color Coded Sets
Part # Description
250-10006 6" Universal Cone Set; 1" bore
250-10007 6" Universal Cone Set; 1 1/4" bore
