120" High Lift Drums

54" High Lift Drums
Click on images for a larger view.

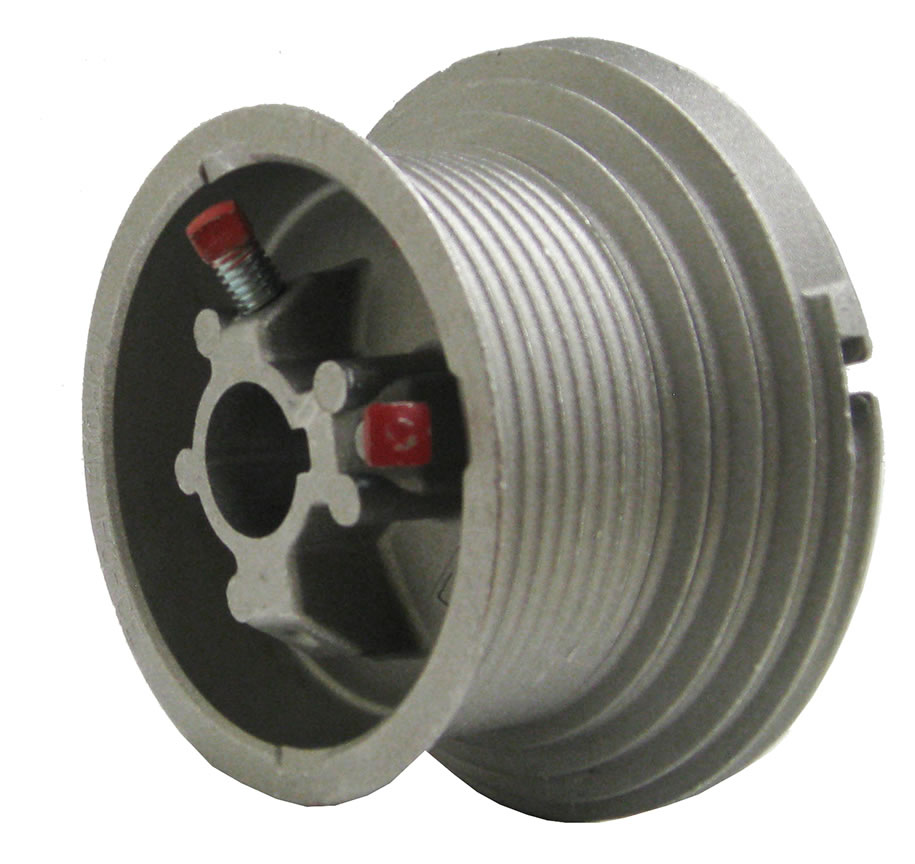

250-20100 (Medium Duty 54" Hi Lift Comm. 1" bore (D400-54 H.L.))

250-20100 (D400-54 HL)
54" of High Lift
Medium Duty
Capacity 275lb/drum, 5/32" Cable
Commercial; 1" bore
Flat Capacity 9"

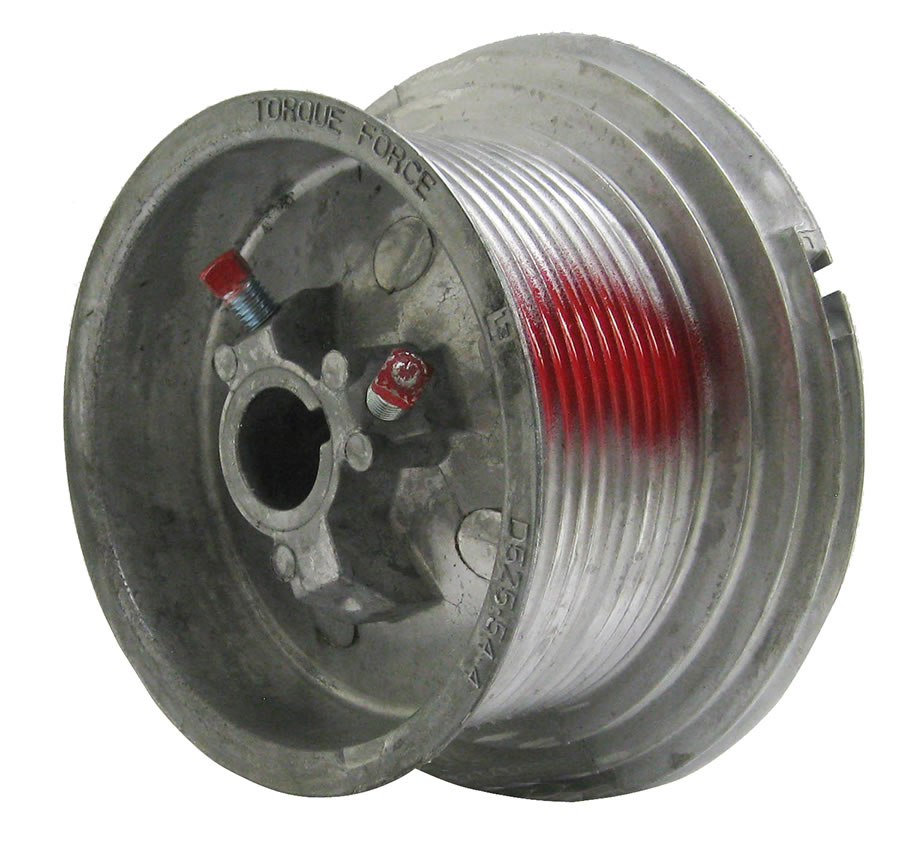

250-20105 (D525-54 HL)
54" of High Lift
Heavy Duty
Capacity 500 lb/drum, 3/16" Cable
Flat Capacity 14"
1/4" Keyway under Set Screw
For Solid Shaft
1" Bore
Set Screws Installed
Color Coded
Part # Description
250-20100 Medium Duty 54" Hi Lift Comm. 1" bore (D400-54 H.L.)
250-20105 Heavy Duty 54" Hi Lift Ind 1" bore (D525-54 H.L.)
250-20106 Heavy Duty 54" Hi Lift Ind 1-1/4" Bore (D525-54 H.L.)


120" High Lift Drums
Click on images for a larger view.

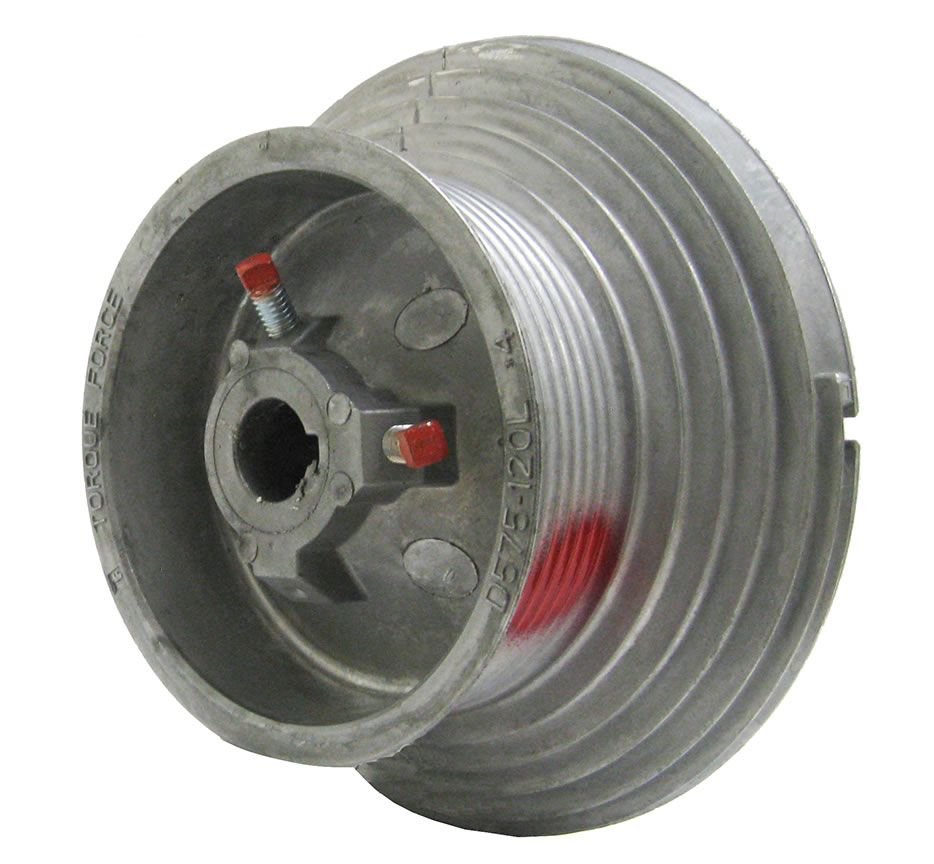

250-20110 (Heavy Duty 10' High Lift Ind 1" bore (D575-120 H.L.))

250-20110
(D575-120 H.L.)
1" bore
250-20111
(D575-120-1.25 H.L.)
1 1/4" bore
120" High Lift Drum
Heavy Duty Industrial
Flat capacity 10"
500 lb capacity/drum;
Max cable 3/16"
1/4" Keyway under Set Screw
For Solid Shaft
Set Screws Installed
Color Coded

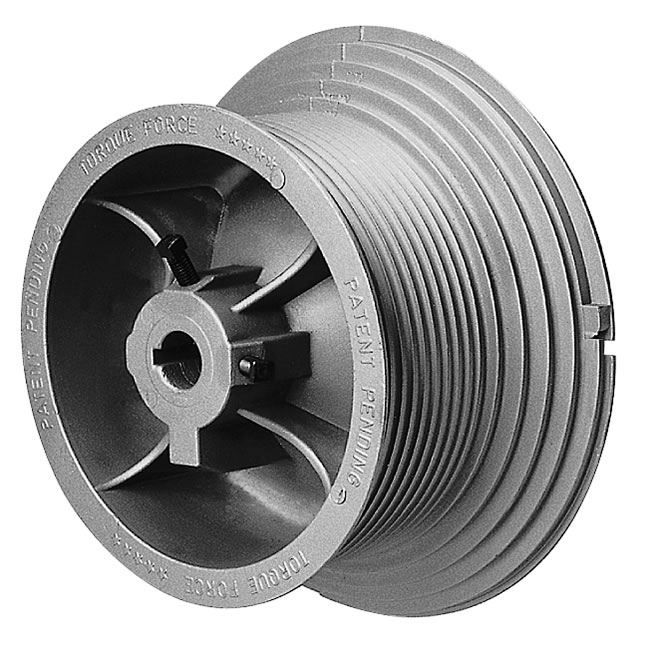

250-20120
(D800-120 HL)
1" bore
250-20121
(D800-120 HL-1.25)
1 1/4" bore
120" of High Lift
Heavy Duty Industrial
Flat capacity 22"
1100 lb capacity/drum;
Max Cable 1/4"
1/4" Keyway under Set Screw
For Solid Shaft
Set Screws Installed
Color Coded
Part # Description
250-20110 Heavy Duty 10' High Lift Ind 1" bore (D575-120 H.L.)
250-20111 Heavy Duty 10' High Lift Ind 1-1/4" shaft bore (D575-120-1.25 H.L.)
250-20120 Heavy Duty 10' High Lift Ind 1" bore (D800-120 H.L.)
250-20121 Heavy Duty 10' High Lift Ind 1-1/4" shaft bore (D800-120-1.25 H.L.)


164" High Lift Drums
Click on images for a larger view.

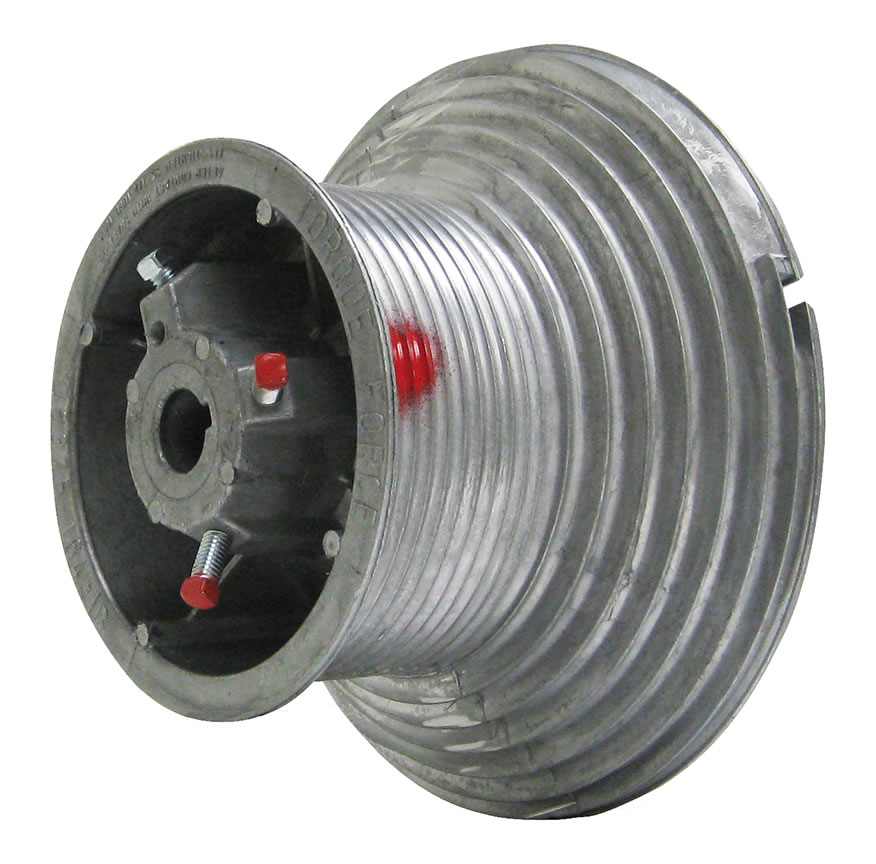

250-20115
(D6375-164 HL)
1" bore
250-20116
(D6375-164 HL-1.25)
1 1/4" bore
164" High Lift Drums
Heavy Duty Industrial
1/4" Keyway under Set Screw
For Solid Shaft
Flat Capacity 20"
800 lb Capacity/Drum;
Max Cable 1/4"
Set Screws Installed
Color Coded
Part # Description
250-20115 Heavy Duty 13'8" High Lift Ind 1" bore (D6375-164 H.L.)
250-20116 Heavy Duty 13'8" High Lift Ind 1-1/4" shaft bore (D6375-164-1.25 H.L.)


132" Vertical Lift Drums
Click on images for a larger view.

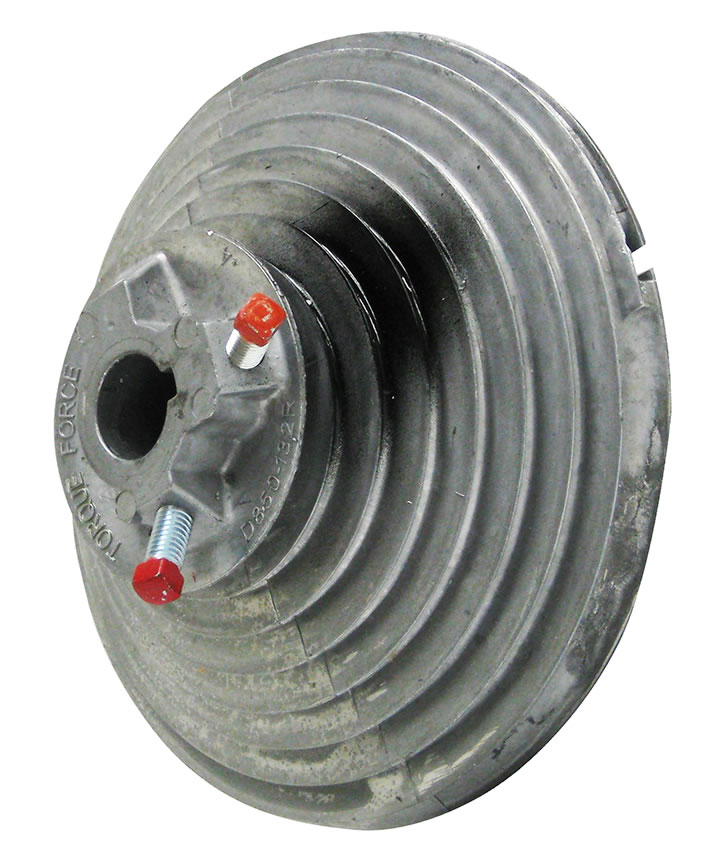

250-20200 (D850-132 VL)
132" Vertical Lift Drums
1" bore
1/4" Keyway under Set Screw
For Solid Shaft, 1" or 1 1/4" bore
Set Screws Installed
Color Coded
11" of lift
425 lb capacity/drum;
Max Cable 3/16"
Part # Description
250-20200 Vertical Lift; 11' of lift 1" bore (D850-132 V.L.)
